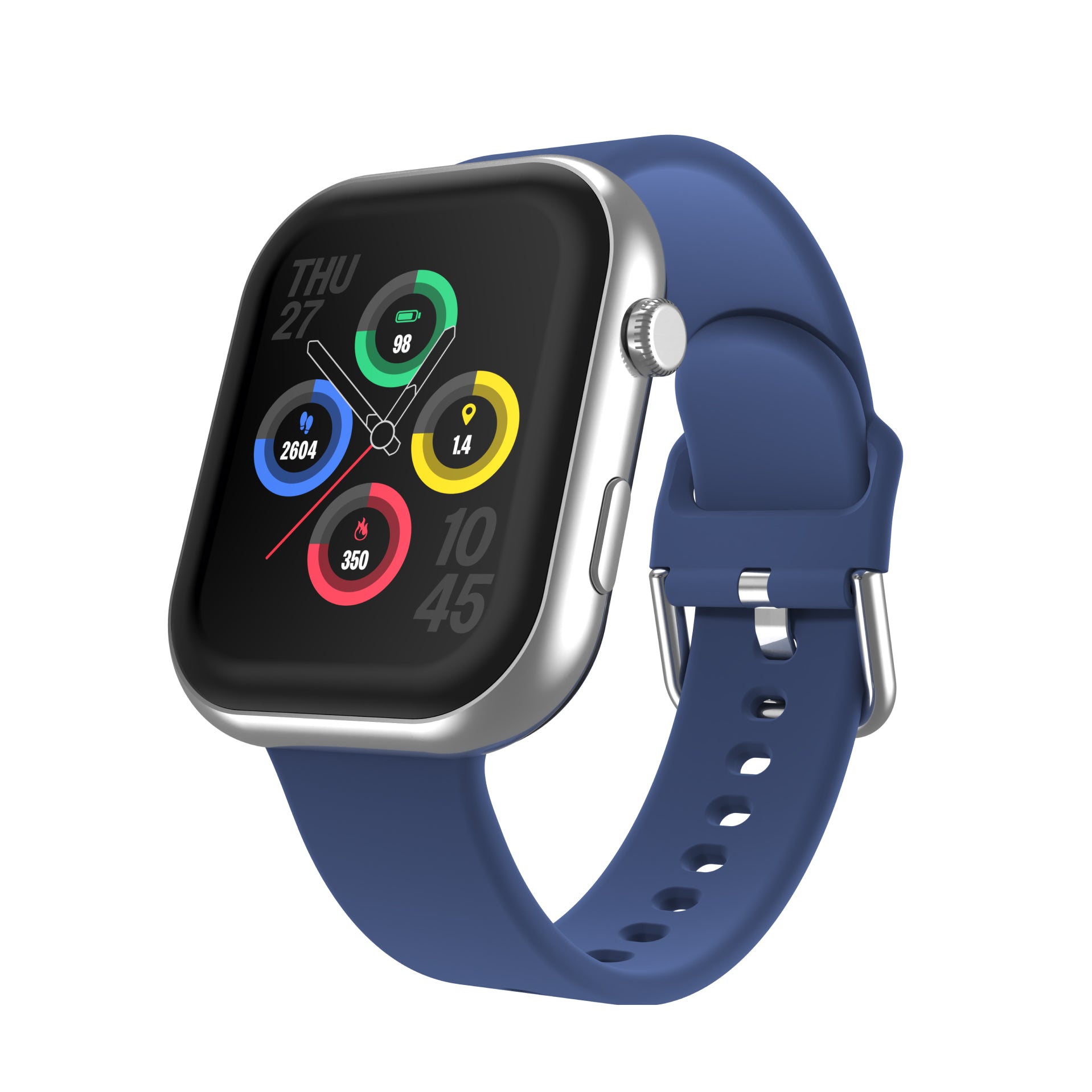

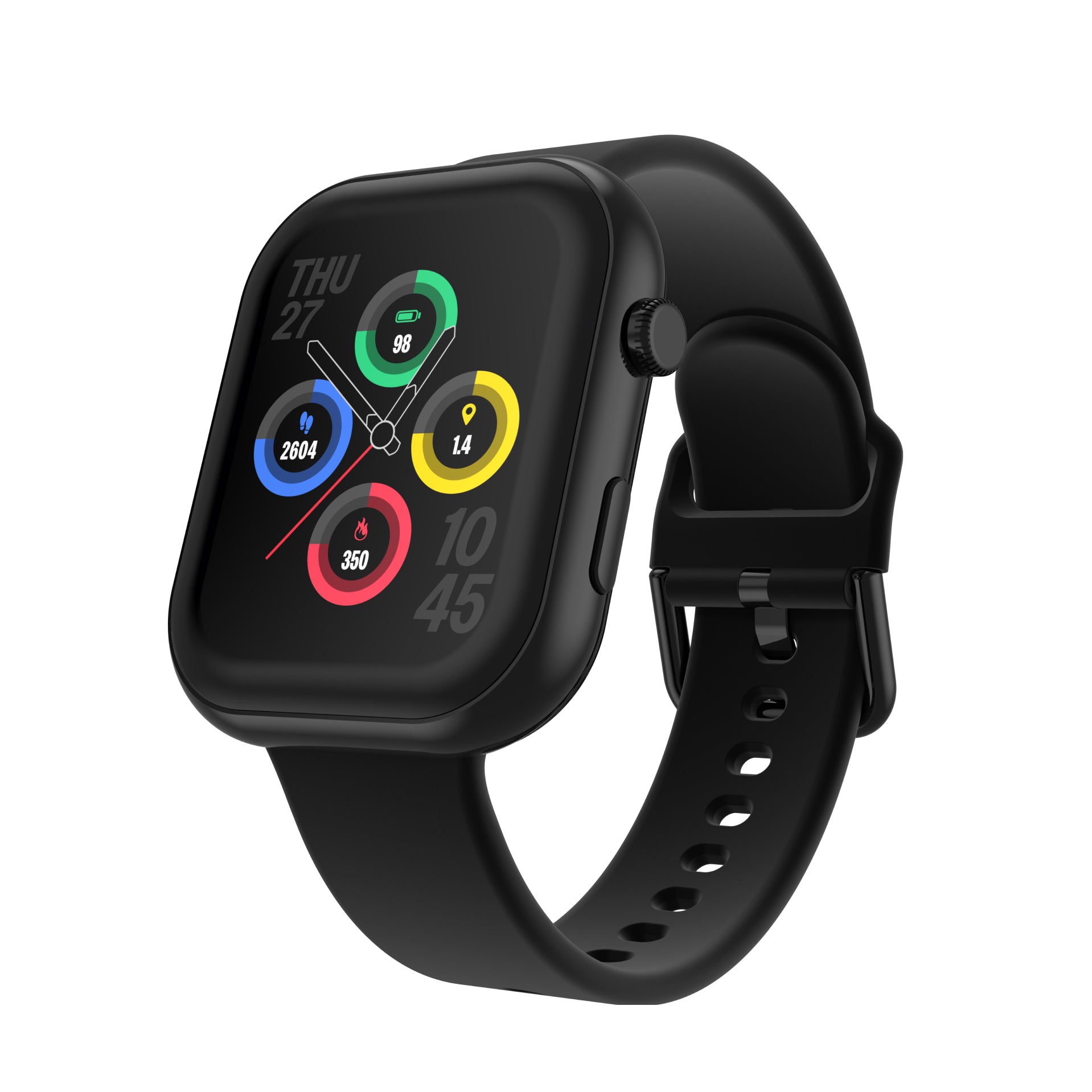

ITOUCH AIR 5 PRO

Engineered for performance, the iTOUCH AIR 5 PRO smartwatch is your all-in-one wellness companion—built to track your workouts, monitor your health, and keep you connected wherever life takes you. Featuring a stunning 1.96” AMOLED display with 700-nit brightness and anti-fingerprint coating, it delivers exceptional clarity and responsiveness in any environment.

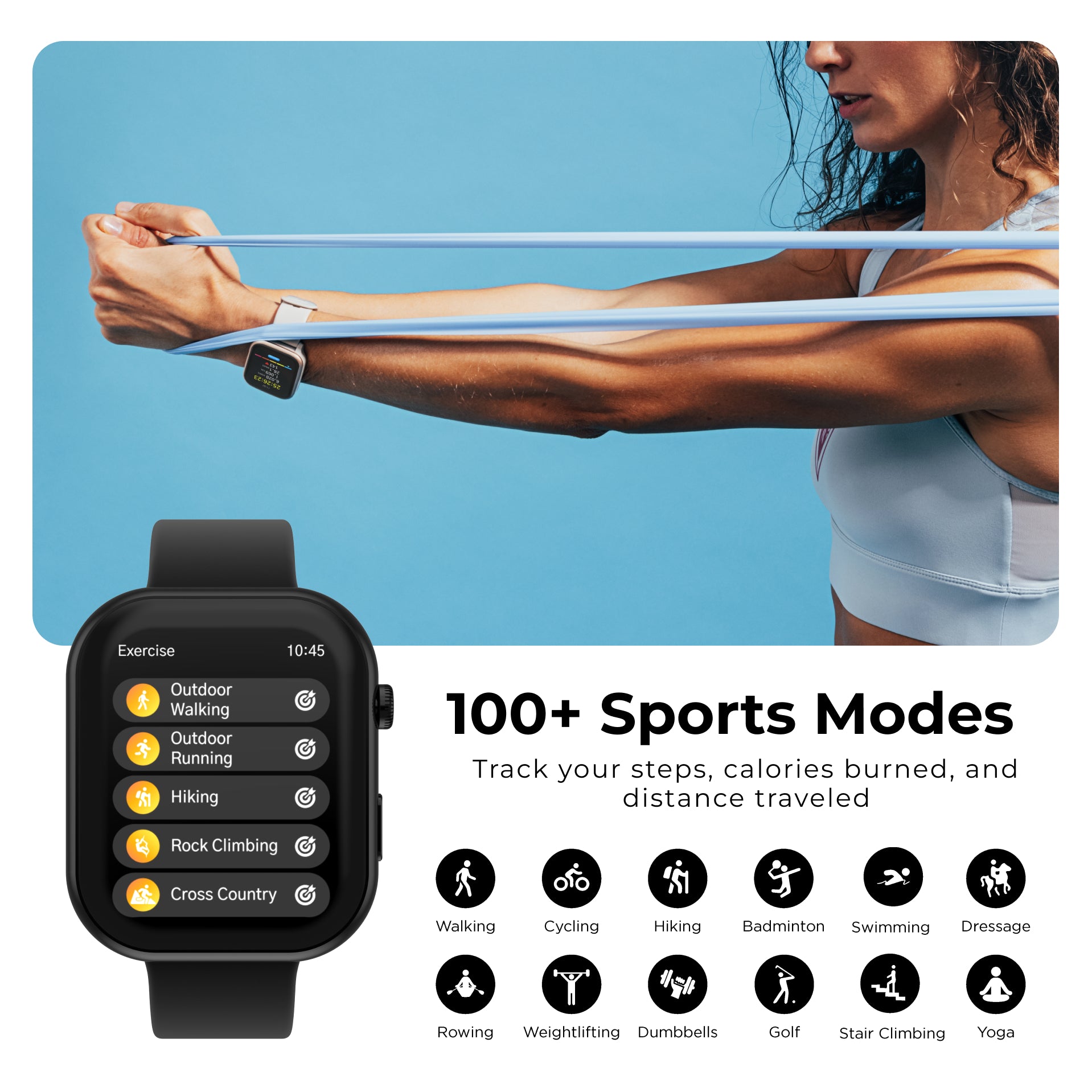

Leave your phone behind during workouts with built-in GPS that captures routes, distance, and pace independently. Track 100+ sports and fitness modes—from HIIT and yoga to hiking, swimming, and more—with advanced sensor support for real-time heart rate, SpO₂, stress, and sleep insights.

With Bluetooth calling, voice assistant access, and customizable notifications, the AIR 5 PRO offers seamless convenience on your wrist. Lightweight, durable, and water-resistant up to 3ATM, it’s built to keep up with your active lifestyle. Whether you're at the gym, at work, or outdoors, AIR 5 PRO powers your day—effortlessly.

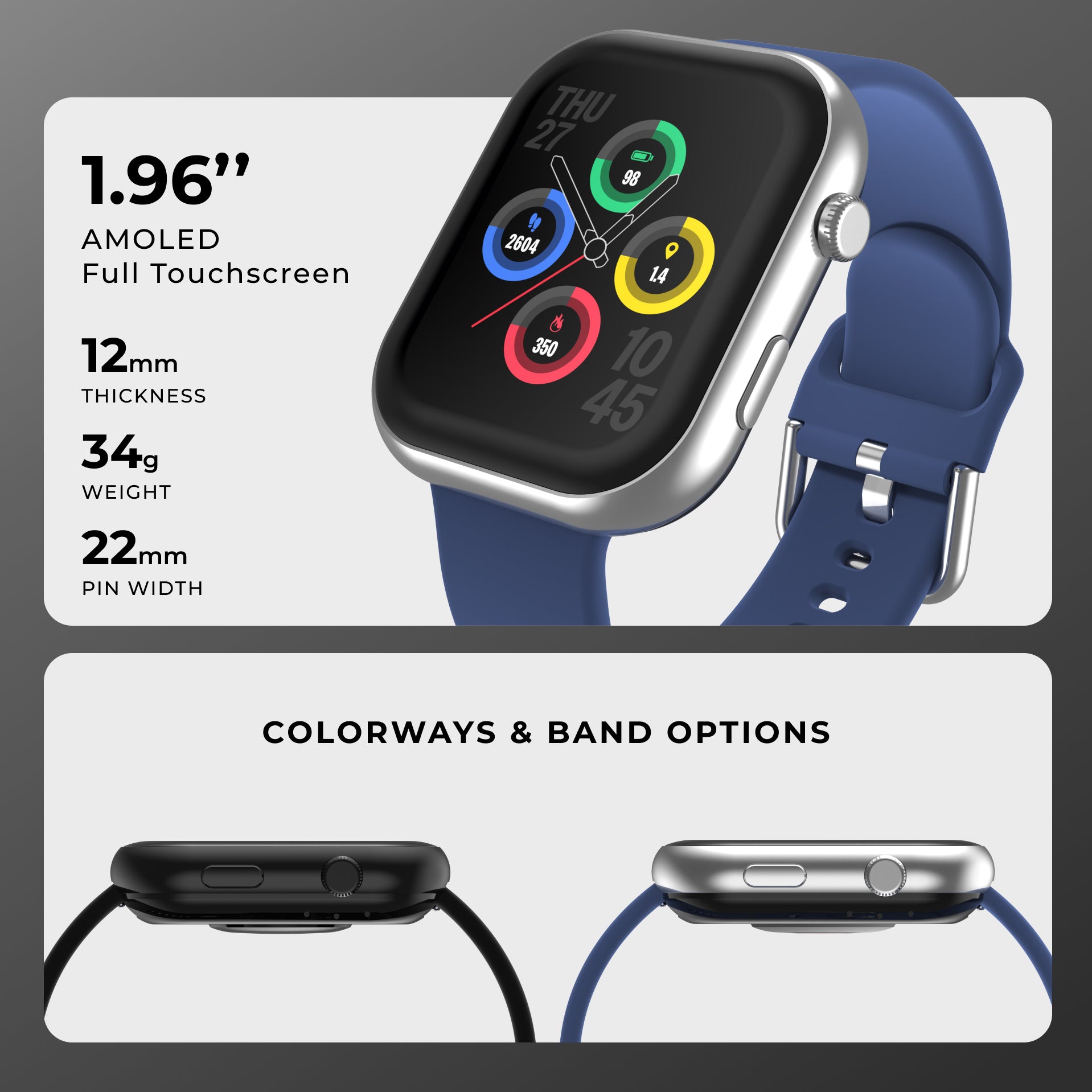

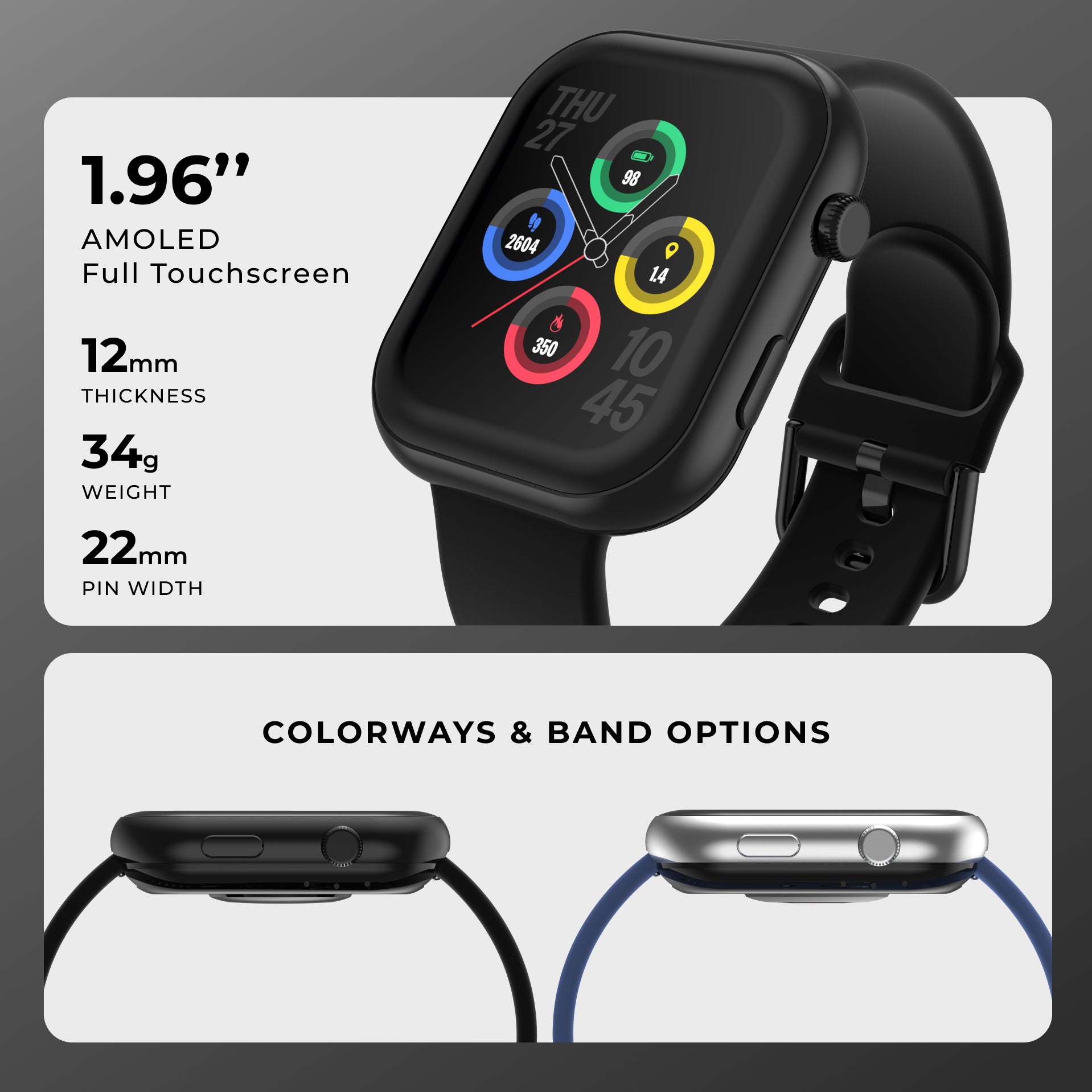

Design

• Colors: Multi Colors
• Dimensions (without sensor base): 46.3 x 40.2 x 12mmWeight (without strap): 34 g

Body Material

• Frame: Aluminum alloy
• Case Back: Fiber-reinforced polymer
• Strap Material: Liquid Silicone
• Water-resistance Grade: 3ATM

Included Technology

• Microphone: Supported
• Speaker: Supported
• Motor: Supported
• Bluetooth camera control
• Flashlight

Display

• Display Material: AMOLED
• Display Size: 1.96”
• Resolution: 410 × 502
• Peak Brightness: Up to 700 nits
• PPI: 331
• Touchscreen: Tempered glass with anti-fingerprint coating

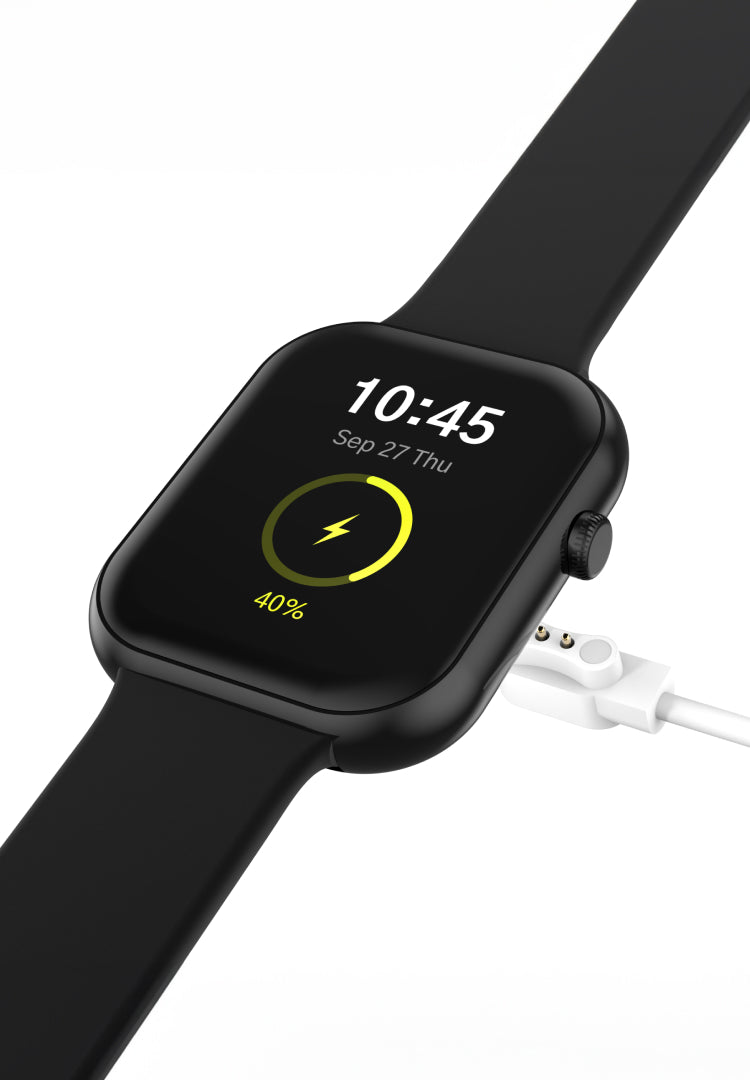

Battery

• Battery Capacity: 400 mAh (rated value)
• Charging Method: Magnetic 2 pins charging cable
• Charging Cable with data transfer
• Battery Life: Typical usage: 10+ days
• Charging Time: Approx. 2 hours

Sensors

• Health: PPG Optical Sensor (BioTracker™) – For continuous and manual tracking of heart rate, blood oxygen (SpO₂) and stress
• Motion: 3-axis Accelerometer – Detects steps, sleep patterns, and daily movement and Gyroscope – Supports wrist gestures and enhances workout motion tracking
• Location: Built-in GPS Sensor – Enables independent route tracking for outdoor activities like walking, running, hiking, and cycling without needing a phone

Storage & Performance

• RAM: 128MB
• Expandable Storage: Includes 4GB SD
• Card Total Media Storage: Up to 100,000+ photos or 20+ hours of video

Connectivity

• Bluetooth 5.4, BLE
• Make and receive calls directly from the watch
• Requires active Bluetooth connection to smartphone
• Bluetooth music control & playback
• Bluetooth camera control

Compatibility

• Works with Android 9.0+ and iOS 13.0+ for health data, activity tracking, firmware updates, and feature control.

• Smartwatch (including strap)
• Magnetic charging cable
• Instruction manual—Quick Start Guide

• Is the iTOUCH AIR 5 PRO smartwatch compatible with iPhone and Android smartphones?

Yes! The iTOUCH AIR 5 PRO works seamlessly with both Apple iOS and Android smartphones. Just download the iTOUCH Wearables App from the App Store or Google Play to get started.

• Does the iTOUCH AIR 5 PRO have built-in GPS?

Yes, the AIR 5 PRO features built-in GPS for accurate tracking of outdoor walks, runs, bike rides, and more — no phone connection required during your activity.

• Can I make or receive calls with the iTOUCH AIR 5 PRO?

Yes, the AIR 5 PRO supports Bluetooth calling. When connected to your phone, you can make and receive calls directly from your smartwatch.

• Does the iTOUCH AIR 5 PRO support third-party music apps like Spotify or Pandora?

The iTOUCH AIR 5 PRO cannot install third-party music apps, but it includes a music control feature that lets you play, pause, and skip tracks playing on your smartphone.

• Can the AIR 5 PRO sync with health and fitness apps like Strava or Apple Health?

The iTOUCH AIR 5 PRO syncs activity and health data through the iTOUCH Wearables App. While it may not connect directly to all third-party apps, you can explore available integrations or data export options in the app settings.

• How long does the iTOUCH AIR 5 PRO battery last?

With typical use, the AIR 5 PRO lasts around 5–7 days. GPS workouts and continuous health monitoring may reduce battery life, while turning on Power Save mode can help extend it.

• How long does it take to charge the iTOUCH AIR 5 PRO?

It takes about 2 hours to fully charge the AIR 5 PRO from empty using the included USB cable.

• Is the iTOUCH AIR 5 PRO waterproof?

Yes! The iTOUCH AIR 5 PRO is rated 3ATM, meaning it is water-resistant up to 30 meters. It’s safe for swimming, washing hands, and everyday splashes — but not recommended for scuba diving or hot showers.

• Why doesn’t the AIR 5 PRO come with a charging adapter?

To reduce environmental waste, the AIR 5 PRO includes only the USB charging cable. You can use any standard 5V USB power adapter you already have at home.

• My AIR 5 PRO keeps disconnecting from Bluetooth — how can I fix this?

First, ensure your phone’s OS and the iTOUCH Wearables App are fully updated. Restart both your phone and watch, then reconnect. If the issue continues, try a factory reset on the watch. For help, contact support@itouchwearables.com.

Notes

Not a Medical Device

iTOUCH AIR 5 smartwatch is not a medical device. All health-related data such as heart rate, SpO₂, and stress levels are for reference only and should not be used for diagnosis or treatment. Please consult a healthcare professional for any medical concerns.

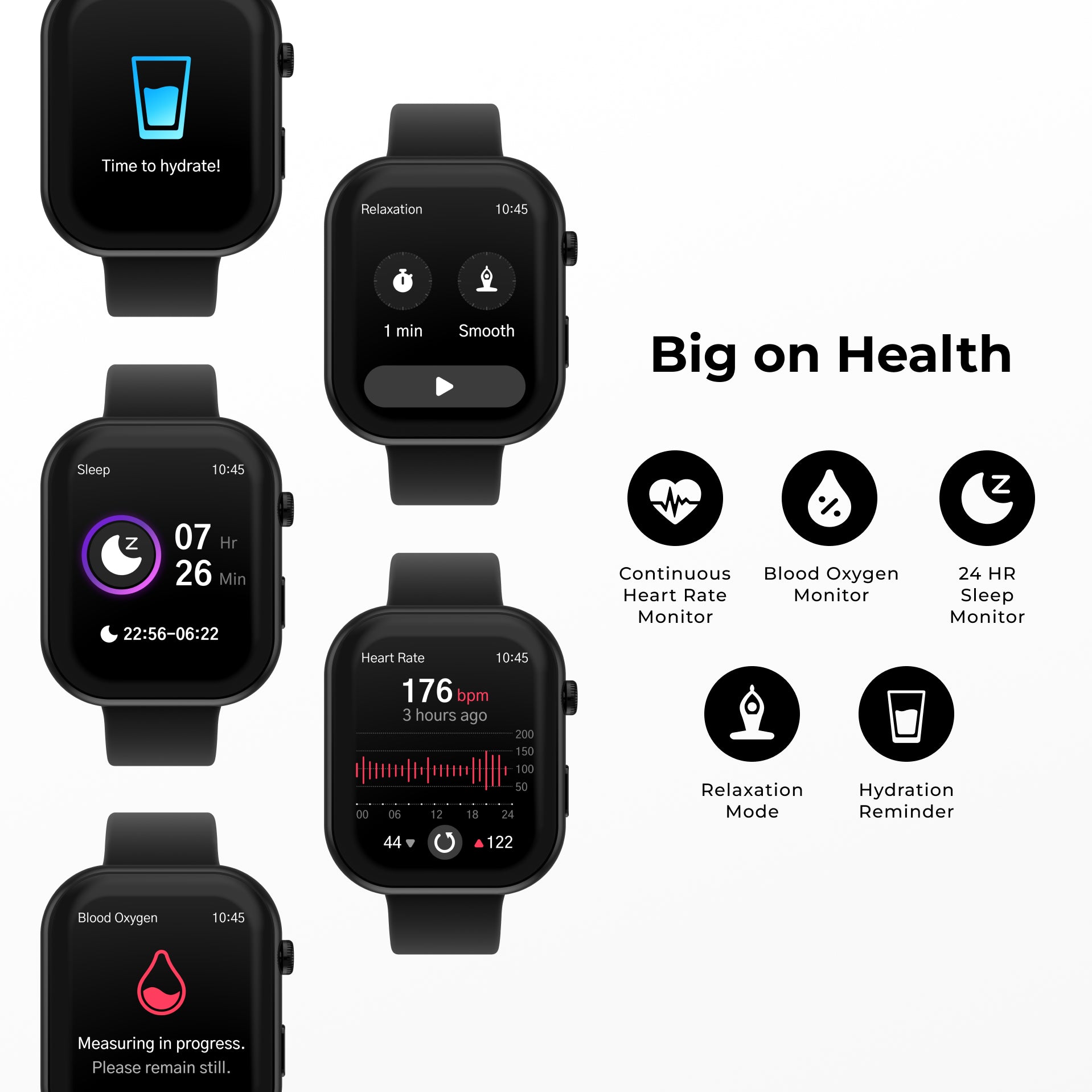

Health Monitoring

For accurate 24-hour heart rate and sleep tracking, enable these features in the iTOUCH Wearables App. Wear the watch snugly about one finger-width above your wrist and remain still during measurements. Stress monitoring and breathing exercises need to be activated on the watch or app. Proper fit and stable conditions ensure the best accuracy for all smart health measurements.

Battery Life Disclaimer

Actual battery performance may vary depending on settings, environment, and usage habits.

• Light Usage: Up to 14 days on a single charge with minimal interaction—occasional Bluetooth sync, limited notifications, and light health tracking.
• Typical Usage: Around 10 days with moderate activity—more wrist raises, message alerts, music playback, and daily workouts.
• Heavy Usage: Up to 5 days with frequent screen use, calls, GPS workouts, and continuous health tracking.
• Battery Saver Mode: Extends life up to 25 days by disabling GPS/Bluetooth, reducing background syncing, and limiting health monitoring.
• Always-On Display: Reduces battery life to approximately 4 days.

GPS Battery Life:

• Continuous GPS: Up to 15 hours
• Automatic GPS (power-optimized): Up to 24 hours
• These estimates are based on a 400 mAh usable battery capacity, with average daily consumption ranging from 23.1 mAh (light use) to 70.4 mAh (heavy use). Battery life is maximized through intelligent power management tailored to your lifestyle.

24-Hour Sleep Monitoring & Sleep Score

AIR 5 PRO continuously monitors sleep. Sessions must be longer than 2 hours to be recorded. If multiple sessions occur with gaps shorter than 1 hour, they are merged; longer gaps are treated separately.

The sleep score (out of 100) is calculated using:

• Component A: Deep Sleep % (max 25 points)
• Component B: Sleep Start Time (max 10 points)
• Component C: Sleep Duration (max 20 points)
• Component D: Fixed Score (20 points) Formula: (A + B + C + D) × 4 ÷ 3

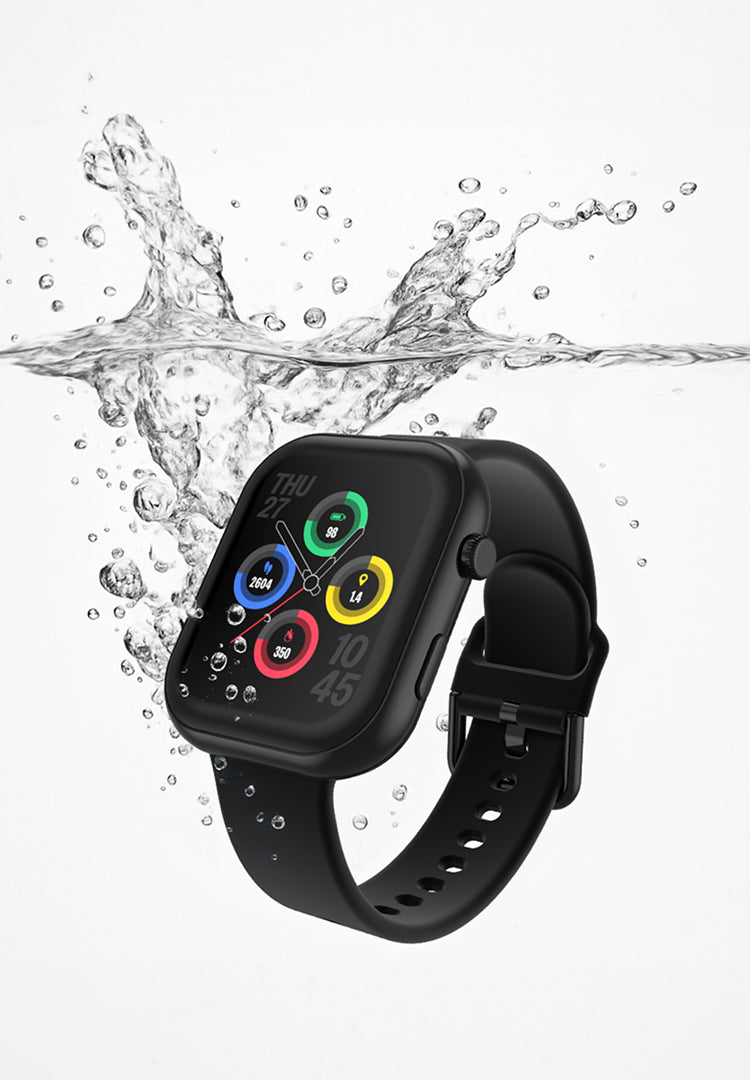

Water Resistance (3ATM Rated)

iTOUCH AIR 5 PRO is rated 3ATM, which means it can withstand water pressure equivalent to a depth of about 30 meters (100 feet). This rating makes the watch suitable for everyday water exposure such as rain, splashes, and hand washing. However, it is not designed for swimming, diving, snorkeling, or prolonged water immersion. The 3ATM rating provides protection mainly against low-pressure water exposure.

⚠ Charging Safety

Do not charge the device while it's wet. Always dry your hands and the charging port completely before connecting to power.

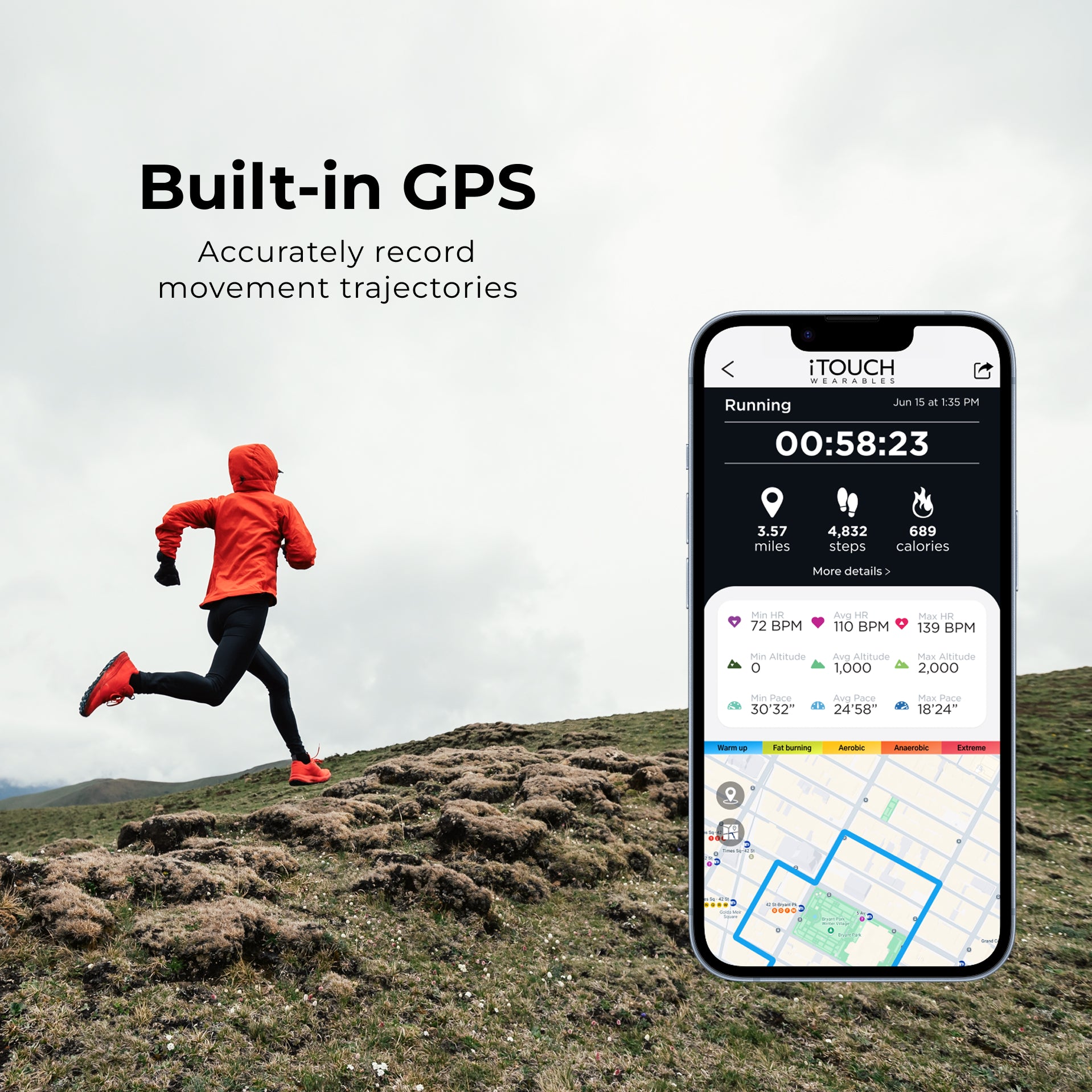

Built-in GPS (No Phone Required) iTOUCH AIR 5 PRO features built-in GPS hardware, allowing you to accurately track outdoor activities such as running, walking, and cycling without needing your smartphone. Distance, speed, and route data are captured directly from the watch, offering a more seamless and independent workout experience.

Voice Assistant & Quick Reply

ITOUCH AIR 5 supports voice assistant functions and quick message replies when connected to your smartphone via Bluetooth. To enable these features, please grant the necessary permissions on your phone. Note that quick reply messaging is currently available only on Android devices running version 7.0 or higher.

Bluetooth Connectivity

Bluetooth range may vary due to environmental factors. Maintain a connection within 10 meters (33 feet) for optimal syncing and feature access.

Firmware Updates

Device features may be improved over time via firmware updates. We recommend keeping both your watch and the iTOUCH Wearables App updated for optimal performance and new features.

App & OS Compatibility

The iTOUCH Wearables App is compatible with:

• Android 7.0 and above
• iOS 13.0 and above Some features may b

Magnetic Field Warning

Avoid exposure to strong magnetic fields (e.g., MRI machines), as they may interfere with internal sensors and components.

Sensor Components

Equipped with advanced optical heart rate sensor, SpO₂ sensor, motion/accelerometer sensor, and GPS chipset to support all-day health, fitness, and location tracking.

Compliance

This product complies with:

• FCC regulations (U.S.)
• California Proposition 65
• EU Directives including CE, RoHS, and REACH It meets safety, environmental, and radio emission standards required in applicable markets.

Statements

Product Representation

Product images and on-screen content are for illustration purposes only. Actual product appearance—including color, materials, size, and interface design—may vary slightly due to manufacturing changes, lighting conditions, or display settings.

Data Source & Performance Disclaimer

Unless otherwise specified, all product specifications, performance data, and sensor results are based on internal testing or supplier-provided data. Actual user experience may vary depending on environmental conditions, software version, device configuration, and usage patterns.

Health Monitoring Disclaimer

This device is not a medical device. Features such as heart rate, SpO₂, sleep, stress, and fitness tracking are intended for general wellness and personal reference only. These measurements should not be used for diagnosis, treatment, or medical decisions. For health concerns, please consult a licensed medical professional.

Charging & Safety Notice

Only use the provided charging cable or an approved compatible charger. Do not charge the device when it is wet. Ensure both the device and charging contacts are fully dry before connecting to power.

Wireless Connectivity Notice

Bluetooth and other wireless features require a compatible smartphone and may vary in stability depending on range, obstacles, and signal interference. Connected GPS (if available) requires an active connection to a GPS-enabled smartphone.

Software & Content Updates

Product features, software, and technical specifications are subject to change without notice due to ongoing improvements or production updates. Some features may vary by region, device model, or phone operating system compatibility.

Interference with Medical Devices

This product emits low-level radio signals which may interfere with personal medical devices such as pacemakers or hearing aids. If you use such equipment, consult your physician or device manufacturer before use.

Magnetic Field Exposure

Avoid placing or using the device near strong magnetic fields (e.g., MRI machines), which may interfere with sensors or damage internal components.
